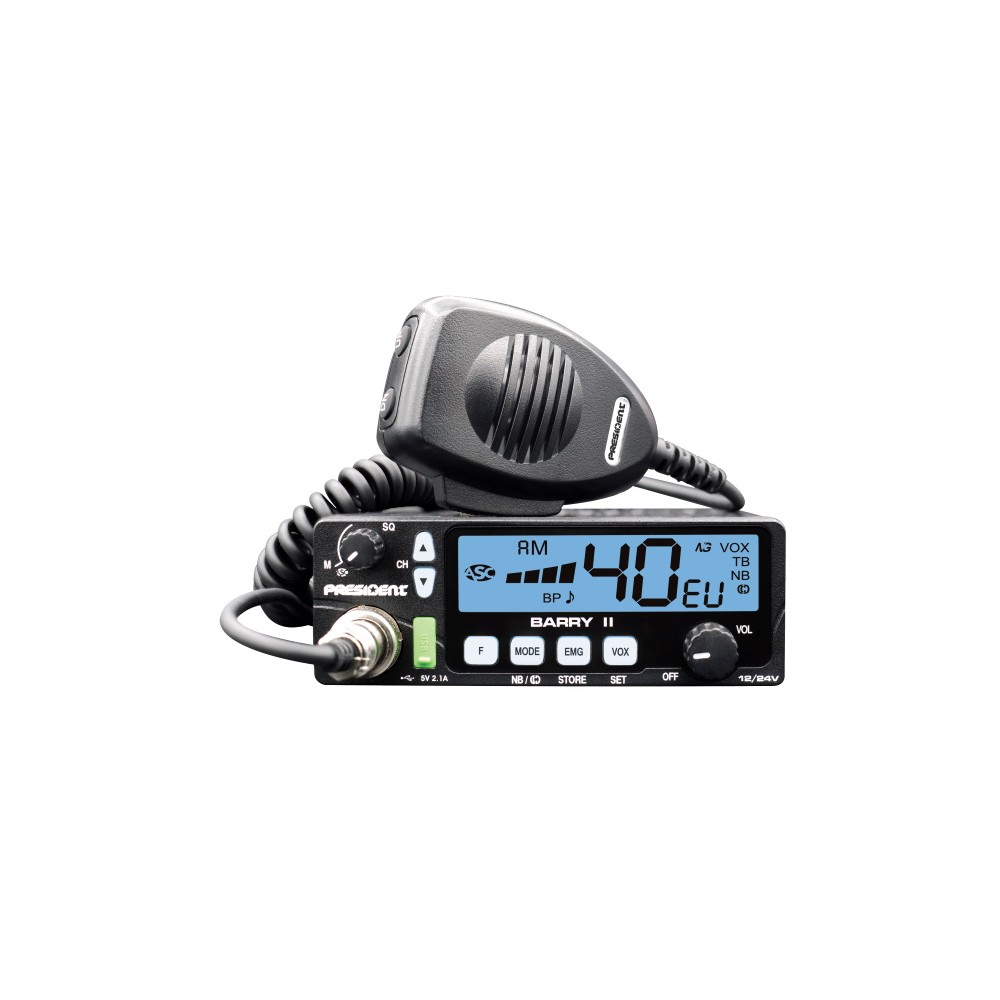

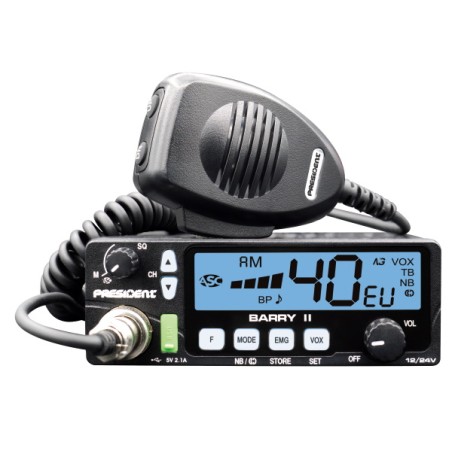

PRESIDENT BARRY II+ RICETRASMETTITORE CB AM/FM OMOLOGATO

PRESIDENT BARRY RICETRASMETTITORE CB AM/FM OMOLOGATO 40 CANALI SPECIFICATIONS Supply : 13.2 V / 24 V Number of channels : 40 ** AM : FM : Channel selector : up / down Volume : Volume adjustment and ON/OFF Squelch : Manual squelch ASC : Display : LCD multifunction S-meter : Digital Public address : Talkback : Vox : Filter ANL : Filter NB : F / Menu function key : Key Beep : Roger beep : Preset channel : EMG (customizable) Microphone plug : front (6 pins) External Vox microphone jack : External loudspeaker jack : Size : 125 (W) x 180 (D) x 45 (H) Weight : 0.9 kg Transmission Frequency allowance +/- 200 Hz Carrier power 4 W AM / 4 W FM ** Transmission interference inferior to 4 nW (- 54 dBm) Audio response 300 Hz to 3 KHz Emitted power in the adj. channel inferior a 20 µW Microphone sensitivity 7 mV Drain 1,7 A at 13,2 V / 0,85 A at 26,4 V Modulated signal distortion 2 % Reception Maxi. sensitivity at 20 dB sinad : 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM Frequency response : 300 Hz to 3 kHz Adjacent channel selectivity : 60 dB Maximum audio power : 2.5 W Squelch sensitivity : mini 0.2 µV - 120 dBm / maxi 1 mV - 47 dBm Frequency image rejection rate : 60 dB Intermediate frequency rej. rate : 70 dB Drain : 160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V) president BARRY II AM/FM Alimentabile sia a 12 che 24 Volt Display retroilluminato con 7 colori a scelta Filtri ricezione ANL e NB Roger Beep VOX incorporato Squelch automatico e manuale S-meter Presa USB da 2.1 Ampere Presa microfonica a 6 pin in metallo **=versione export (AD ESCLUSIVA RICHIESTA CLIENTE PER EXPORT EXTRA UE) 6/8 Watt AM e 20 Watt FM, 120 canali + alfa
