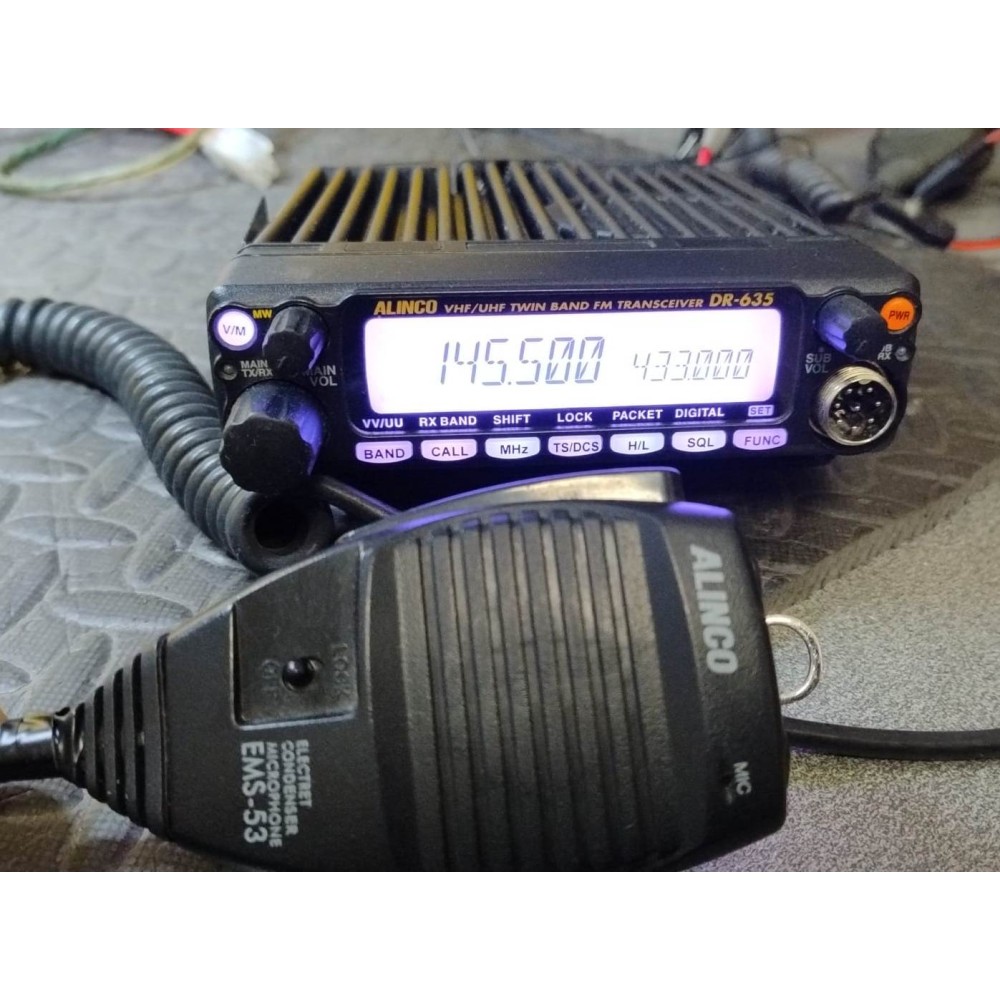

ALINCO DR635 VEICOLARE BIBANDA VHF - UHF
113,93 €
102,54 €
Risparmia 10%
Tasse incluse
ALINCO DR635 VEICOLARE BIBANDA VHF - UHF
Apparato davvero come nuovo, compreso microfono originale, cavo alimentazione, staffa auto.
Gia ampliato di banda.
SPECIFICATIONS
| GENERAL | |||||||||||||
| Type: | Amateur VHF/UHF transceiver | ||||||||||||
| Frequency range: |
Europe TX: 144-146 / 430-440 MHz RX: 87.5-108 / 108-174 / 335-480 MHz NB! The extended RX frequency range may require modification |
||||||||||||
| Tuning steps: | 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz | ||||||||||||
| Frequency stability: | ±2.5 ppm (No temperature reference) | ||||||||||||
| Mode: |
TX: FM / NFM (DV option) RX: AM / FM / NFM / WFM (DV option) |
||||||||||||
| Channels / memory management: |
80 exclusive for VHF 80 exclusive for UHF 40 common for both VHF & UHF 2 call (1 for VHF and 1 for UHF) 2 scan edges (1 for VHF and 1 for UHF) Alpha tags |
||||||||||||
| Repeater shift / offset: | ±0 to 99.995 MHz | ||||||||||||
| Power supply: | 13.8 VDC ±15% | ||||||||||||
| Current drain / power consumption: |
RX: 500-700 mA TX: Max 11 A |
||||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||||||
| Dimensions (W*H*D): | 140*40*185 mm (5.51*1.57*7.28") | ||||||||||||
| Weight: | 1 Kg (2.2 lb) | ||||||||||||
| Other features: |
Detachable control head. Theft alarm. CTCSS & DCS. Twin RX (V/U, V/V, U/U). |
||||||||||||
|
|
|
||||||||||||
|
|
|
||||||||||||
| RECEIVER SECTION | |||||||||||||
| Receiver system: |
Double conversion superheterodyne 1st IF: 21.7 MHz (VHF) - 45.1 MHz (UHF) 2nd IF: 450 KHz (VHF) - 455 KHz (UHF) |
||||||||||||
| Sensitivity: |
Main band: 0.2 uV or better (12 dB SINAD) Sub band: 0.25 uV or better (12 dB SINAD) |
||||||||||||
| Selectivity: |
FM: 12 KHz (-6 dB) 28 KHz (-60 dB) |
||||||||||||
| Image rejection: | 70 dB | ||||||||||||
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm | ||||||||||||
| External speaker connector: | 3.5 mm | ||||||||||||
|
|
|
||||||||||||
|
|
|
||||||||||||
| TRANSMITTER SECTION | |||||||||||||
| RF output power: |
|
||||||||||||
| Modulation system: | Variable reactance | ||||||||||||
| Max FM deviation (Factory set): |
FM: ±5 KHz NFM: ±2.5 KHz |
||||||||||||
| Spurious emissions: | Better than -60 dB | ||||||||||||
| Microphone impedance / connector: | 2 Kohm / 8-pin (Metal locking ring connector) | ||||||||||||
| Microphone input level: | ? mV | ||||||||||||
|
|
|
||||||||||||
|
|
|
||||||||||||
| MISCELLANEOUS | |||||||||||||
| Manufactured: | Japan, 2005-2014 (Discontinued) | ||||||||||||
| Additional info: | The DTMF mike (EMS-57) is optional in Europe | ||||||||||||
| Related documents: |
User manual (1.4 MB) Service manual (2.4 MB) RF final: RD70HVF1 RF power MOSFET |
||||||||||||
| Modifications and fixes: | |||||||||||||
| Reviews: | |||||||||||||
| Options / Accessories: |
|
