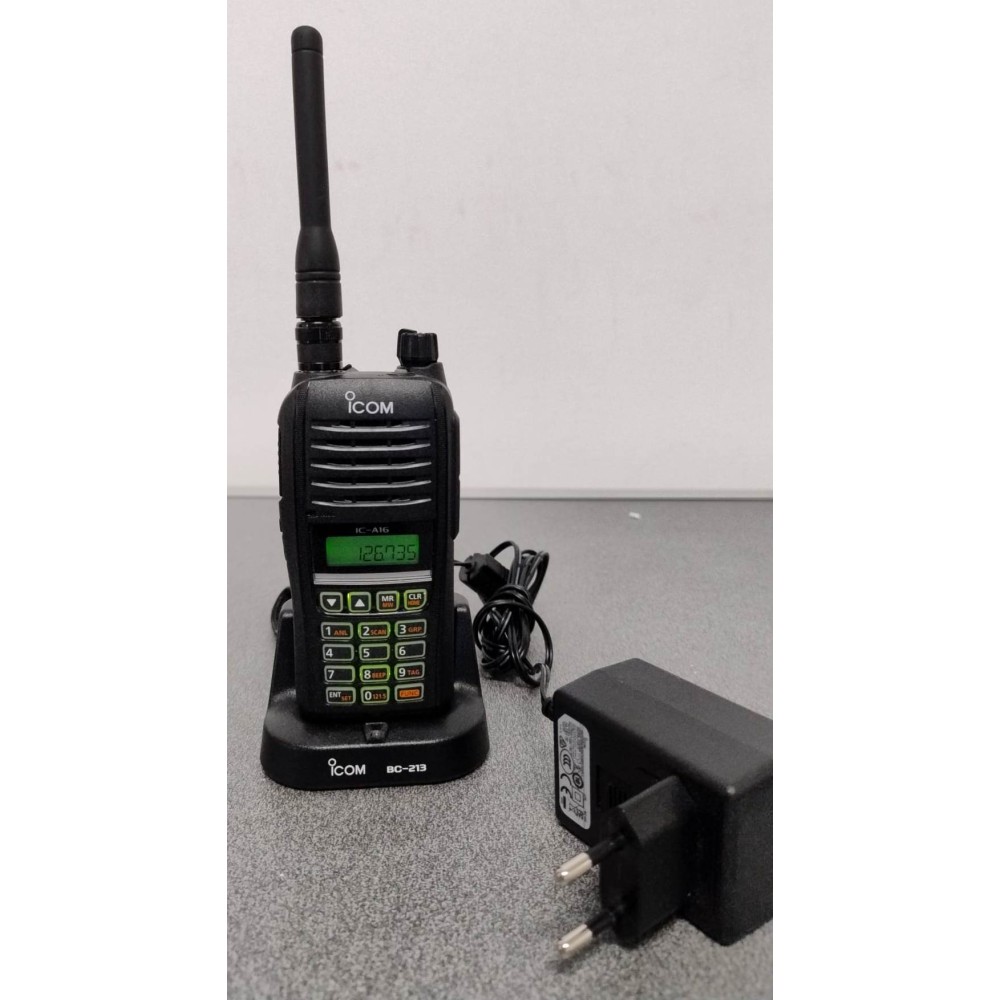

ICOM IC-A16 RTX AERONAUTICO COMPLETO DI BC-213 BASETTA RICARICA BATTERIA - OTTIMO STATO
81,15 €
73,04 €
Risparmia 10%
Tasse incluse
ICOM IC-A16 RTX AERONAUTICO
COMPLETO DI BC-213 BASETTA RICARICA BATTERIA E ANTENNA ORIGINALI
IN OTTIMO STATO
General
| Frequency range | TX/RX : 118.000–136.992 MHz | ||
|---|---|---|---|
| Number of memory channels | 200 channels | ||
| Channel spacing | 8.33 kHz*/25 kHz (* May differ depending on the country.) | ||
| Type of emission | 6K80A3E, 5K00A3E | ||
| Power supply requirement | 7.2 V DC | ||
| Current drain (approximate) | TX High | 1.8 A | |
| RX | Stand-by | 65 mA typical | |
| Max. audio | 650 mA | ||
| Antenna impedance | 50 O (BNC type antenna connector) | ||
| Operating temperature range | –20°C to +55°C | ||
|
Dimensions (W×H×D) (Projections not included) |
52.2 × 111.8 × 34.1 mm (with BP-280) | ||
| Weight (approximate) | 257 g (with BP-280) | ||
Transmitter
| Output power (at 7.2 V DC) | 6.0 W (PEP), 1.8 W (carrier) | |
|---|---|---|
| Audio harmonic distortion | Less than 10% (at 85% + 3 dB modulation) | |
| Harmonics spurious emissions |
Less than –36 dBm (Except for operating frequency ±1 MHz.) |
|
| Frequency stability | ±1 ppm | |
Receiver
| Intermediate frequencies |
46.35 MHz (1st), 450 kHz (2nd) |
|
|---|---|---|
| Sensitivity |
Less than 0 dBµ (at 12 dB SINAD with CCITT) |
|
| Squelch sensitivity (Threshold) | Less than 0 dBµ | |
| Spurious response | More than 70 dB | |
| Hum and noise | More than 40 dB (at 90% modulation) | |
| Audio output power | INT SP | 1500 mW typical |
| EXT SP |
More than 350 mW (AM 8 O 60% modulation at 10% distortion) |
|
| External speaker connector | 3 conductor 3.5 (d) mm | |
Measurements made in accordance with EN300 676-2.
Applicable U.S. Military Specifications
|
Standard |
MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Dust and Water | IP67/IP54 |
Supplied Accessories
· BP-280 battery pack
· BC-213 rapid charger
· BC-242 AC adapter
· FA-B02AR antenna
· MB-133 belt clip
· Hand strap
(* Not supplied, depending on the transceiver version.)
Verrà spedito con un imballo adeguato
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
