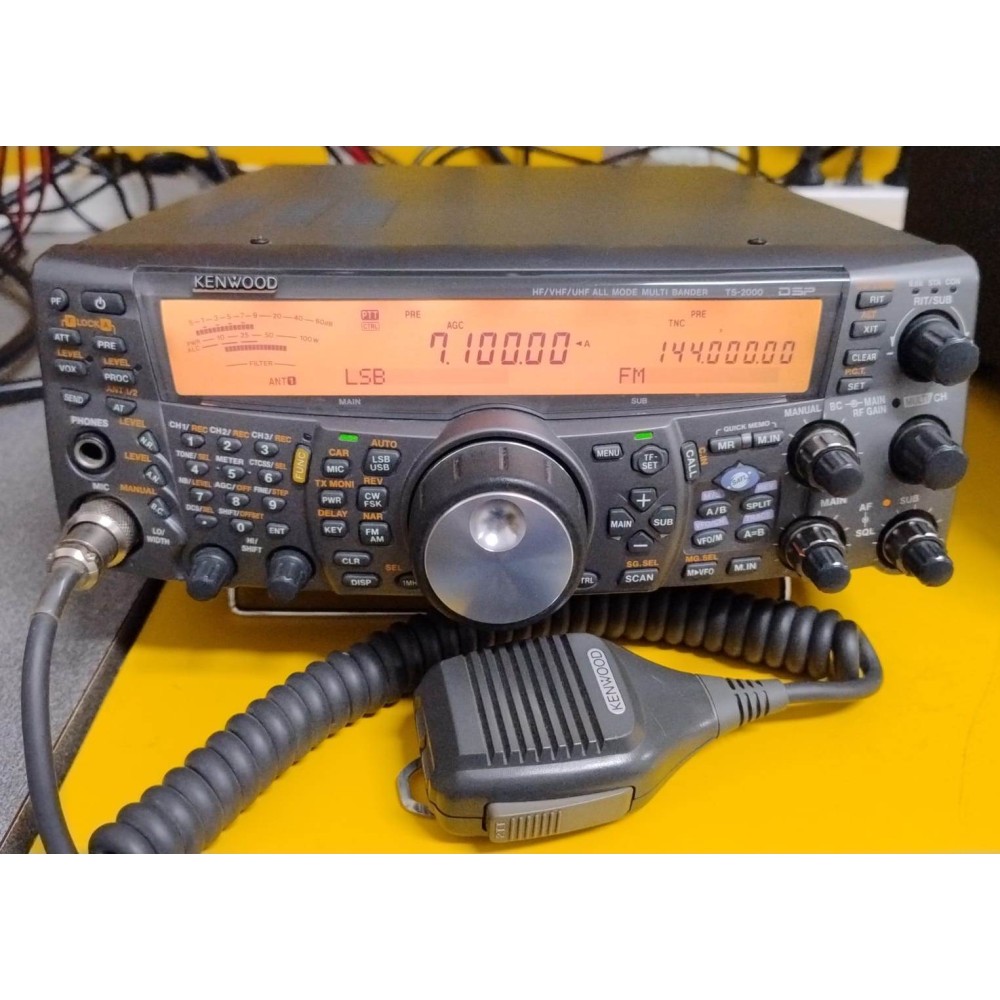

KENWOOD TS-2000 RTX HF/50/VHF/UHF ALLMODE

PERFETTO STATO



Kenwood TS-2000 quadribanda HF/50Mhz/VHF/UHF con doppio ascolto in perfetto stato elettrico ed estetico.



La RTX è già aperta di banda, il suo numero di serie: B090****



Viene venduta completa di cavo alimentazione, microfono originale, manuali e doppi imballi originali.



SPECIFICATIONS

GENERAL
Type: Amateur HF/VHF/UHF transceiver
Frequency range: TX: 10-160 m + WARC / 6 m / 2 m / 70 cm
RX: 0.03-60 / 118-174 / 220-512 MHz
Band options
1240-1300 MHz / 10 W (UT-20)
Tuning steps: From 1 MHz down to 1 Hz
Frequency stability: ±0.5 ppm @ -10 to +50° C (14 to 122°F)
Mode: AM / FM / NFM / SSB / CW / FSK
Channels / memory management: 300 regular with alpha tags (7 characters)
Non-volatile EEPROM storage
Repeater shift / offset: ±0-59.95 MHz in 50 KHz steps
Power supply: 13.8 VDC ±15% (6-pin Molex)
Current drain / power consumption: RX: 2.6 A (Squelched)
TX: Max 20.5 A
Antenna impedance/connector: 50 ohm / Three SO-239, One N-jack (Plus one N-jack for 23 cm/UT-20 option)
(16.7-150 ohm on HF/6 m with built-in autotuner)
Dimensions (W*H*D): 281*107*371 mm (11.06*4.21*14.61")
Weight: 7.8 Kg (17.2 lb)
Other features: CTCSS/PL, DCS. DSP. Built-in 1K2/9K6 TNC. Auto-AT on HF/6 m. DX-Cluster functions.
Can also be operated via computer or optional RC-2000 control head
Market codes: K = Americas, E = Europe, E2 = Spain




RECEIVER SECTION
Receiver system: Quadruple conversion superheterodyne (Main transceiver, except FM)
1st IF: 69.085 or 75.925 MHz (HF/6 m), 41.895 MHz (118-512 MHz), 135.495 MHz (1240-1300 MHz)
2nd IF: 10.695 MHz
3rd IF: 455 KHz
4th IF: 12 KHz (Except FM)
Double conversion superheterodyne (Sub-receiver)
1st IF: 58.525 MHz
2nd IF: 455 KHz
Sensitivity: Main - AM (10 dB S/N)
0.5-1.7 MHz: 31.6 uV
1.7-24.5 MHz: 2 uV
24.5-30 MHz: 1.3 uV
50-54 MHz: 1.3 uV
144-146 MHz: 1 uV (All E-types)
144-148 MHz: 1.4 uV (K-type)
430-450 MHz: 1 uV
1240-1300 MHz: 1 uV
Main - FM (12 dB SINAD)
28-30 MHz: 0.22 uV
50-54 MHz: 0.22 uV
144-146 MHz: 0.18 uV (All E-types)
144-148 MHz: 0.25 uV (K-type)
430-450 MHz: 0.18 uV
1240-1300 MHz: 0.18 uV
Main - SSB/CW/FSK (10 dB S/N)
0.5-1.7 MHz: 4 uV
1.7-24.5 MHz: 0.2 uV
24.5-30 MHz: 0.13 uV
50-54 MHz: 0.13 uV
144-146 MHz: 0.11 uV (All E-types)
144-148 MHz: 0.16 uV (K-type)
430-450 MHz: 0.11 uV
1240-1300 MHz: 0.11 uV
Sub - AM (10 dB S/N)
144-146 MHz: 1.55 uV (All E-types)
144-148 MHz: 2.25 uV (K-type)
430-450 MHz: 1.55 uV
Sub - FM (12 dB SINAD)
144-146 MHz: 0.28 uV (All E-types)
144-148 MHz: 0.40 uV (K-type)
430-450 MHz: 0.28 uV
Squelch sensitivity:
Noise figure:
Selectivity: Main - AM (Lo-cut: 100 Hz/Hi-cut: 3000 Hz)
6 KHz (-6 dB)
12 KHz (-50 dB)
Main - FM
12 KHz (-6 dB)
25 KHz (-50 dB)
Main - SSB (Lo-cut: 300 Hz/Hi-cut: 2600 Hz)
2.2 KHz (-6 dB)
4.4 KHz (-60 dB)
Sub - AM
12 KHz (-6 dB)
25 KHz (-50 dB)
Sub - FM
12 KHz (-6 dB)
25 KHz (-50 dB)
Image rejection: Main: 70 dB
Sub: 60 dB
AF output power / speaker: 1.5 W at 10% distortion / 8 ohm
External speaker connector: Two TS "Minijacks" (3.5 mm), 8 ohm




TRANSMITTER SECTION
RF output power:

HF 6 m 2 m 70 cm
AM: 5-25 W 5-25 W 5-25 W 5-12.5W
FM/NFM: 5-100 W 5-100 W 5-100 W 5-50 W
SSB (PEP): 5-100 W 5-100 W 5-100 W 5-50 W
CW/FSK: 5-100 W 5-100 W 5-100 W 5-50 W
Modulation system: AM: Low level
FM: Reactance
SSB: Balanced
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: HF: Better than -50 dB
6 m to 70 cm: Better than -60 dB
Microphone impedance / connector: 600 ohm (Optimal) / 8-pin (Metal locking ring connector)
Microphone input level: ? mV




MISCELLANEOUS
Manufactured: Singapore/Malaysia, 2000-2018 (Discontinued)
Additional info:
Related documents: User manual (2.9 MB)
Service manual (7.5 MB)
Service supplement (18 MB)
2SK2596 HF/VHF pre pre-driver
2SC1971 HF/VHF pre-driver
2*2SC1972 drivers
2*2SC5125 HF power transistors
2*2SC2694 144 MHz power transistors
Modifications and fixes: Sensitivity on MW (1 KB)
Reviews: Popular Communications: March 2001, page 36
QST: July 2001
Options / Accessories:
ARCP-2000
DRU-3A
HS-5
HS-6
LF-30A
MB-430
MC-43S
MC-47
MC-52DM
MC-60A
MC-80
MC-90
PG-2Z
PS-53
RC-2000
SP-23
SP-50B
UT-20
VS-3 		Advanced Radio Control Program
Digital Recording Unit
Deluxe headphones
Small headphones
Low-pass filter
Mobile mounting bracket
Hand microphone
Multi-function hand microphone
DTMF microphone
Deluxe desk microphone
Desk microphone
DSP-compatible desk microphone
DC cable
Regulated DC power supply, 22.5 A
Mobile remote controller
External speaker
Mobile speaker
23 cm band unit, 10 W
Voice Synthesizer Unit





Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....

- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza

 Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.

 Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
