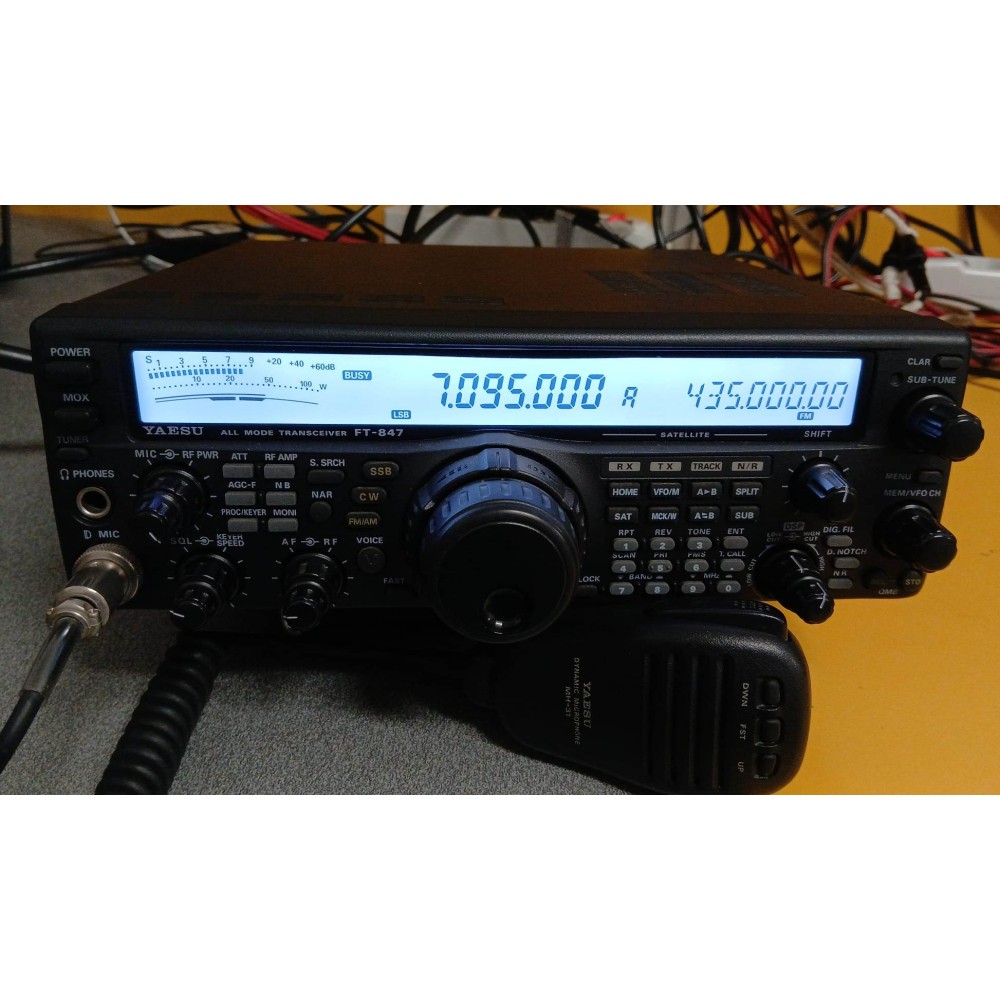

YAESU FT-847 HF/50/144/430MHZ ALL MODE - PARI AL NUOVO - ORMAI INTROVABILE

YAESU FT-847 HF/50/144/430MHZ ALL MODE - PARI AL NUOVO - ORMAI INTROVABILE

613,93 €
552,54 € Risparmia 10%
Tasse incluse
Quantità
Desiderati
Confronta

YAESU FT-847 HF/50/144/430MHZ ALL MODE



Splendido Quadribanda Yaesu HF/50/144/430mhz AM/FM/SSB/CW, ormai introvabile!!!

Una vera chicca, pari al nuovo, già aperto di banda.



Viene venduto corredato del suo microfono, cavo alimentazione,

manuale d'istruzione cartaceo in italiano e cavo CAT RS232.

Non ha imballo originale, ma verrà spedito con uno adeguato.



SPECIFICATIONS

GENERAL
Type: Amateur HF/VHF/UHF transceiver
Frequency range: Europe
TX: 10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz (Also 4 m in the UK)
RX: 0.1-76 / 108-174 / 420-512 MHz
USA
TX: 10-160 m + WARC / 50-54 / 144-148 / 430-450 MHz
RX: 0.1-76 / 108-174 / 420-512 MHz
Tuning steps: Minimum 0.1 Hz (SSB/CW)
Minimum 10 Hz (AM/FM)
Frequency stability: AM/SSB/CW/AFSK
±2 ppm @ 0 to 40°C (32 to 104°F)
FM
±5 ppm +1 KHz @ 0 to 40°C (32 to 104°F)
Mode: AM / FM / FM-N / SSB / CW / AFSK
Channels / memory management: 78 regular
4 Home
1 scan edge pair (PMS)
1 Prio
12 satellite with alpha tags (8 characters)
1 QMB
RAM storage with lithium battery backup
Repeater shift / offset: ±0-99.99 MHz
Power supply: 13.8 VDC ±10% (6-pin Molex connector)
Current drain / power consumption: RX: Max 2 A
TX: Max 22 A
Antenna impedance / connector: 50 ohm / Three SO-239 and one N-jack
Dimensions (W*H*D): 260*86*270 mm (10.24*3.39*10.63")
Weight: 7 Kg (15.43 lb)
Other features: CTCSS/PL and DCS. 1750 Hz tone call. CAT control. 9K6 packet ready.
Crossband repeater. Dimmer. Cloning. DSP.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: AM-N (10 dB S/N)
0.5-1.8 MHz: 20 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.25 uV
2 m: 0.2 uV
70 cm: 0.2 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
2 m: 0.125 uV
70 cm: 0.125 uV
Selectivity: AM:
9 KHz (-6 dB)
20 KHz (-60 dB)
AM-N:
2.2 KHz (-6 dB)
4.5 KHz (-60 dB)
FM:
15 KHz (-6 dB)
30 KHz (-60 dB)
FM-N:
9 KHz (-6 dB)
20 KHz (-60 dB)
SSB/CW:
2.2 KHz (-6 dB)
4.5 KHz (-60 dB)
CW-N (With optional YF-115C):
500 Hz (-6 dB)
2 KHz (-60 dB)
Image rejection: 60 dB
AF output power / speaker: 1.5 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 4-16 ohm




TRANSMITTER SECTION
RF output power:

HF 6 m 2 m 70 cm
AM: 25 W 25 W 12.5 W 12.5 W
FM: 100 W 100 W 50 W 50 W
SSB (PEP): 100 W 100 W 50 W 50 W
CW/FSK: 100 W 100 W 50 W 50 W
Modulation system: AM: Early stage, low level
FM: Variable reactance
SSB: Balanced modulation
Max FM deviation (Factory set): FM: ±5 KHz
FM-N: ±2.5 KHz
Spurious emissions: HF: Better than -50 dB
6 m/2 m/70 cm: Better than -60 dB
Microphone impedance / connector: 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector)
Microphone input level: ? mV




MISCELLANEOUS
Manufactured: Japan, 1998-2005 (Discontinued)
Additional info: New price, february 1998 in the UK: £1695.00
Related documents: User manual (8.9 MB)
Service manual (15.6 MB)
Schematics (5.7 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
ATAS-100
CT-39
CT-61
FC-20
FP-1023
FP-1030A
FVS-1A
MD-100A8X
MH-31B8
MH-36D8
MMB-66
YF-115C
YF-115S-02
 Active-tuning antenna system
Packet cable
STBY cable
Automatic antenna tuner
AC power supply, switch mode. 23 A (USA only)
AC power supply, regulated. 25 A
Voice synthesizer unit
Desk microphone
Standard hand microphone
Hand microphone with DTMF pad
Mobile mounting bracket
Collins mechanical CW filter. 500 Hz
Collins mechanical SSB filter.



 Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
