YAESU FTM400DE RTX VHF/UHF C4FM - PARI AL NUOVO UNICO PROPRIETARIO

YAESU FTM400DE RTX VHF/UHF C4FM - PARI AL NUOVO UNICO PROPRIETARIO

302,46 €
272,21 € Risparmia 10%
Tasse incluse
Quantità
Wishlist
Compare

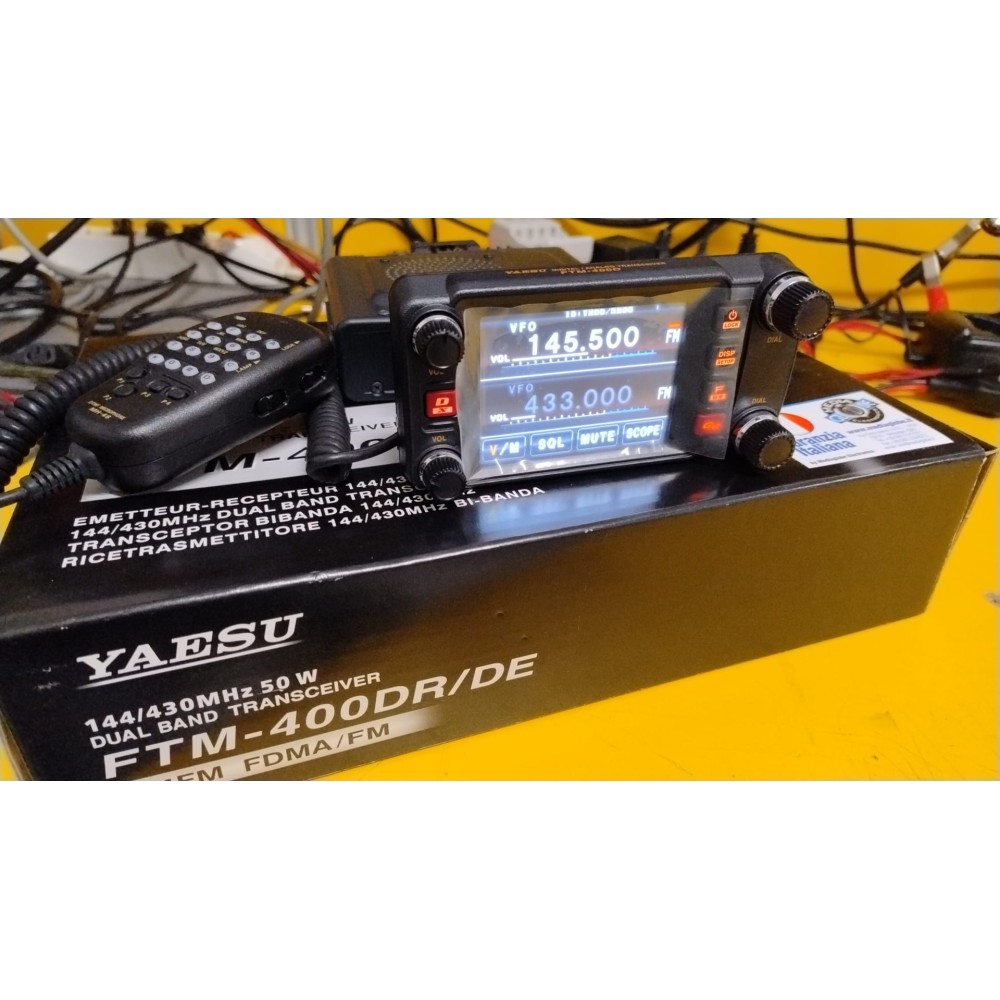

YAESU FTM400DE

RTX VHF/UHF C4FM

PARI AL NUOVO - UNICO PROPRIETARIO



Conosciutissimo Yaesu FTM-400DE analogico e digitale C4FM, praticamente pari al nuovo, unico proprietario, con

il suo imballo originale e tutti i suoi accessori si serie.



Neanche aperto di banda (a richiesta se si vuole la modifica dell'espansione), ancora con pellicola protettiva sul display.



SPECIFICATIONS

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: Europe
TX: 144-146 /430-440 MHz
RX: 108-1000 MHz
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz
Frequency stability: ±2.5 ppm @ -20 to +60°C (-4 to +140°F)
Mode: TX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps)
RX: AM / FM / NFM / DV (C4FM FDMA, 9.6 Kbps)
Channels / memory management: 1000 regular with alpha tags (500 per band)
2 home channels (1 per band)
9 PMS
RAM storage with Li-Ion battery backup
Repeater shift / offset: ±0-99.95 MHz in 50 KHz steps
Power supply: 11.7-15.8 VDC
Current drain / power consumption: RX: 500 mA
TX: Max 12 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): Transceiver: 140*40*125 mm (5.5*1.6*4.9")
Controller: 140*72*20 mm (5.5*2.8*0.8")
Weight: Total: 1.2 Kg (2.64 lb)
Other features: Large 3.5" color touch screen. APRS functions. Packet 1200/9600bd ready.
Spectrum scope. ARTS. Built-in GPS. Micro-SD card. Twin RX.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 47.25 MHz (A-band), 44.85 MHz (B-band)
2nd IF: 450 KHz
Sensitivity: 140-150 MHz: 0.2 uV (12 dB SINAD)
420-470 MHz: 0.2 uV (12 dB SINAD)
Selectivity: AM/FM: 12 KHz (-6 dB)
35 KHz (-60 dB)
Image rejection:
AF output power / speaker: 3 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm




TRANSMITTER SECTION
RF output power:

High Mid Low
2 m: 50 W 20 W 5 W
70 cm: 50 W 20 W 5 W
Modulation system: FM: Variable reactance
DV: 4FSK/C4FM
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 2 Kohm / 8-pin (Modular)
Microphone input level: ? mV




MISCELLANEOUS
Manufactured: 2012-2015 (Discontinued)
Additional info:
Related documents: User manual (76 MB)
Service manual (29 MB)
FTM-400DR/DE Wires-X manual (17.4 MB)
Modifications and fixes:
Reviews:
Options/Accessories:
BH-2A
BU-2
CD-40
CT-162
FVS-2
HRI-200
MH-42C6J
MH-48A6JA
MH-85A11U
MLS-200-M10
MMB-98
SCU-20
SMB-201
ADMS-M400 		Bluetooth headset. Requires BU-2 and CD-40
Bluetooth adaptor unit
Charger cradle for BH-2A
Separation cable. 6 m (19.6 ft)
Voice guide unit
WIRES-X internet linking interface and software
Standard hand microphone
Hand micreophone with DTMF
Hand microphone with built-in camera
Weatherproof external speaker
Vacuum bracket for the control head
PC connection cable
Cooling fan base
Windows programming software



Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali (non semplici wattmetri....)
TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF
- DAIWA CN-801 HP 1.8-200 MHZ 2KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-465M 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove emissioni SSB HF-VHF-UHF
 Ogni apparecchio viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
