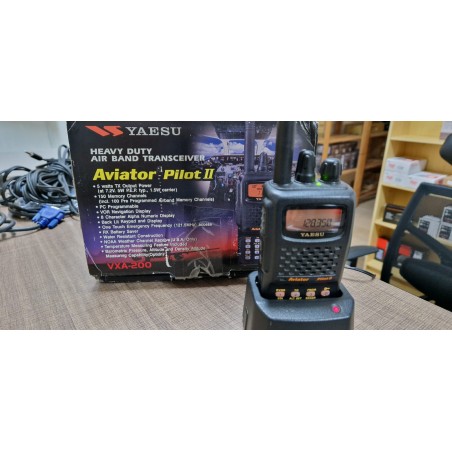

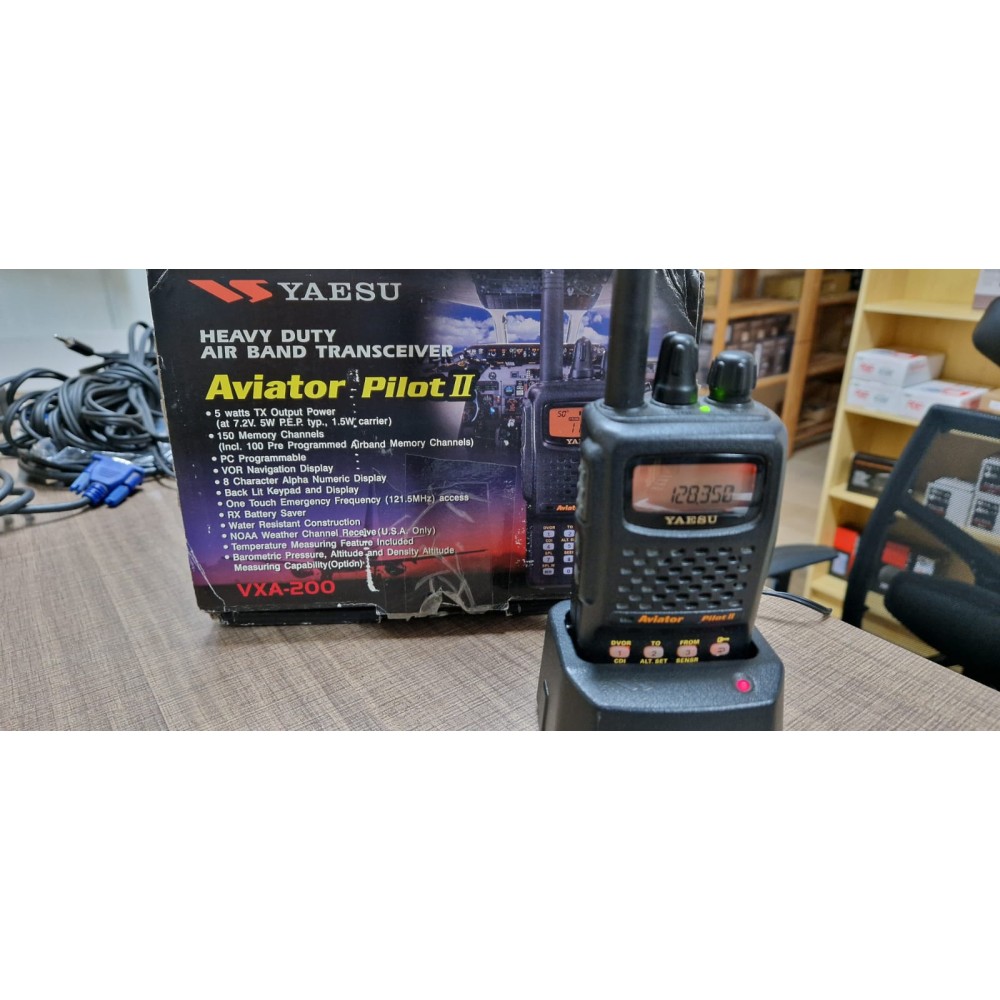

YAESU VXA-200 RICETRASMETTITORE AEREONAUTICO
81,15 €
73,04 €
Risparmia 10%
Tasse incluse
YAESU VXA-210
RICETRASMETTITORE AEREONAUTICO PORTATILE
Perfetto in tutto, con caricabatteria da tavolo, MANUALE
SPECIFICATIONS
| GENERAL | |||
| Type: | Airband transceiver | ||
| Frequency range: |
TX: 118-137 MHz RX: 108-137 / 161.650-163.275 MHz |
||
| Tuning steps: | 25 KHz | ||
| Frequency stability: | ±10 ppm @ -10 to +60°C (14 to 140°F) | ||
| Mode: |
TX: AM RX: AM / FM |
||
| Channels / memory management: |
150 regular 100 Book Alpha tags (Eight characters) 10 NOAA weather channels (US version only) |
||
| Power supply: | 6-15 VDC | ||
| Current drain / power consumption: |
RX: 65-190 mA TX: 1 A @ 1.5 W carrier |
||
| Antenna impedance / connector: | 50 ohm / SMA | ||
| Dimensions (W*H*D): | 58*109*30 mm (2.28*4.29*1.18") | ||
| Weight: | 345 g (12.2 oz) | ||
| Other features: | VOR navigation. PC programmable. Temperatur sensor option. | ||
|
|
|
||
|
|
|
||
| RECEIVER SECTION | |||
| Receiver system: |
Double conversion superheterodyne 1st IF: 35.4 MHz 2nd IF: 450 KHz |
||
| Sensitivity: | 0.8 uV (6 dB S/N) | ||
| Squelch sensitivity: | |||
| Noise figure: | |||
| Selectivity: |
8 KHz (-6 dB) 25 KHz (-60 dB) |
||
| Image rejection: | |||
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm | ||
| External speaker connector: | |||
|
|
|
||
|
|
|
||
| TRANSMITTER SECTION | |||
| RF output power: | 1.5 W (Carrier), 5 W (PEP) | ||
| Modulation system: | Low level amplitude modulation | ||
| Spurious emissions: | Better than -60 dB | ||
| Microphone impedance / connector: | 150 ohm / ?-pin | ||
| Microphone input level: | ? mV | ||
|
|
|
||
|
|
|
||
| MISCELLANEOUS | |||
| Manufactured: | Japan, 2001-200x (Discontinued) | ||
| Additional info: | |||
| Related documents: | |||
| Modifications and fixes: | |||
| Reviews: | |||
| Options / Accessories: |
|
YAEVXA200
Nuovo
Commenti Nessun cliente per il momento.
